Flexible LED display introduce

flexible LED display is a dynamic, breathtaking, and cutting-edge curable LED display that creates boundless opportunities for custom shape configurations without sacrificing quality.

Experience true HD-quality video with the creative freedom that allows customers to redefine the space in ways that were not possible before.

We specialize in custom flexible LED screens for broadcast studios, featuring exceptional quality, fully customizable pixel pitches as small as 1mm, high refresh rates, gen lock capable systems, superior black levels, and minimal moiré effect—making our products ideal for such a demanding environment.

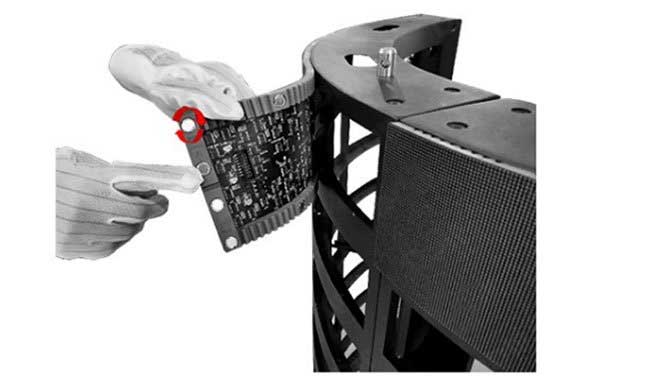

Flexible panels can be clipped with magnets to a metal structure for a perfect seamless curve and easy maintenance.

Flexible LED display units are ideal for special-shaped LED screens. Flexible LED modules are designed for artistic and creative LED Screen applications.

Made of soft PCB board, it’s soft to fit into any curved surface. To make an artistic design, It’s ideal to be used in museums, galleries, studios, shopping malls, stadiums, hotel lobbies, airports, etc.

What are the factors affecting Flexible LED Display?

Compared with other LED displays, there are fewer factors affecting the price of Flexible LED Display:

Quality of Flexible LED Module
The quality of flexible LED module determines the durability and stability of flexible LED display. If you choose a good quality flexible LED module, then the final splicing out of the flexible LED display price is also a little higher.

Other components

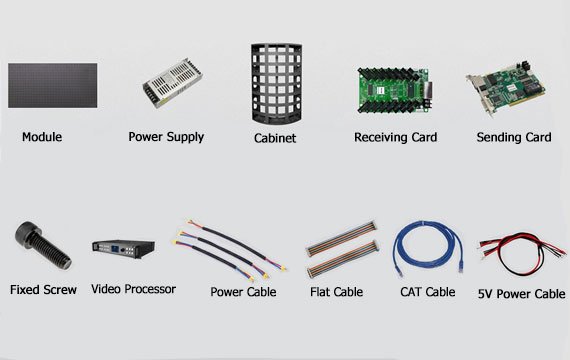

In addition to the flexible LED module, other matching components, also very important. For example, the use of LED power supply, receive card, send card, etc. Any of these components have quality problems, will lead to the screen can not start.

Packing method

Because the flexible LED display is not as square as the conventional LED display, but strange shapes. For example, some spherical LED displays have to be packaged in 2–4 parts due to their large size, so these costs will eventually be added to the total cost.

Manufacturing process

Since the flexible LED display is installed by magnetic suction, any one of the problems will lead to the whole screen can not present a perfect picture quality. Therefore, the manufacturing process is very demanding.

How to Repair Flexible LED Display Module?
When the flexible LED display module is damaged, how should we repair it? Let’s take a look at the specific process:

We have to use tweezers to carefully remove the gel around the LED bead, so that the pins inside are exposed to facilitate our next step.
Keep the position of the lamp bead, and then use a 40 ° soldering iron welding, welding, time should not exceed 3 seconds.
Use the soldering iron to melt a little solder wire, and then solder the LED on the PCB board. Note that the long probe part of the LED bead is positive and the short probe part is negative.
Once the soldering is complete, just encapsulate the LED display using the same type of gel.

Problems that may occur after soldering flexible LED beads

Missing color

When we test the repaired flexible LED module with power on, if we find that the color is missing, then we can replace an LED and repeat the above steps again. If the same problem still occurs, then we need to carefully test the PCB circuit board to see if there are other wiring problems.

Flexible LED module can not light up

Check whether the power supply appears to be loose, and then observe whether the power indicator works normally. If the power supply fails to work properly, then the power supply needs to be replaced in time.

LED dim

This situation may be caused by the reverse polarity of the LED or the inconsistency between the switching power supply and the LED voltage labeling. The solution is to ensure that the LED positive and negative wiring is correct, and the switching power supply will be replaced with a consistent LED voltage labeling.
