Stadium LED Display
Ignite exciting events, LED stadium LED display helps every event.
Stadium LED Display
The LED stadium LED display uses a self-developed highly elastic mask that can effectively prevent the screen from being damaged when the ball hits the screen uncontrollably in unexpected circumstances.
In multiple crash test data, LED sports LED display performed extremely well and has been recommended as a key cooperative enterprise in various major events many times.
LED lives up to expectations, strives to achieve the highest quality, and contributes to every event.
All Products of Stadium LED Display
Stadium LED Display
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Stadium LED Display Feature Introduction
Anti-Collision
The stadium LED display has an overall anti-collision design to avoid damage to the screen due to uncontrolled balls hitting the screen during the game.
Waterproof and Dustproof
Whether used in indoor stadiums or open-air stadiums, stadium LED displays can be easily controlled.
Automatic Brightness Adjustment
The stadium LED display can be equipped with an automatic brightness adjustment controller to automatically change the brightness of the LED display according to the light intensity of the venue.
Long-Lasting
The stadium LED display uses imported steel, which has a much stronger anti-corrosion ability than ordinary steel and is not easy to rust after long-term use.
Stadium LED Display cabinet is lighter and has stronger performance
stadium LED display uses high-density alloy materials, which has better anti-rust and anti-corrosion functions.
While ensuring that all functions are consistent, the internal structure is reduced and the weight of the stadium LED display cabinet is 20% lighter than that of ordinary cabinets.
An Indispensable Partner for Sports Venues
Among the stadium LED displays, each has its own unique aspect, such as the peripheral LED display. Although the front looks like a circle, there is actually an additional triangular support frame behind its cabinet, which allows the cabinet to the body can be used normally without any support.
For example, the live LED display at the top of the stadium seats requires a fixed position in the venue for support. It is these different types of LED displays that complete the functionality of the entire sports venue.
The Effects of Using Stadium LED Displays in Different Venues

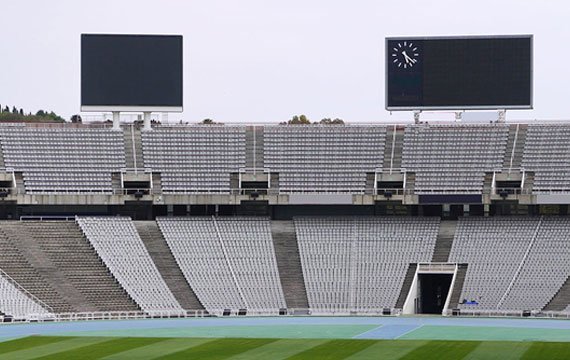

Sports LED displays in sports venues are usually located at the top of the seats. The main function of placing the stadium LED display at this location is to take care of the spectators sitting at the farthest end.
Due to the distance from the venue, some details cannot be seen clearly, so the game details need to be viewed through a large stadium LED display.
Detailed explanation of stadium LED display

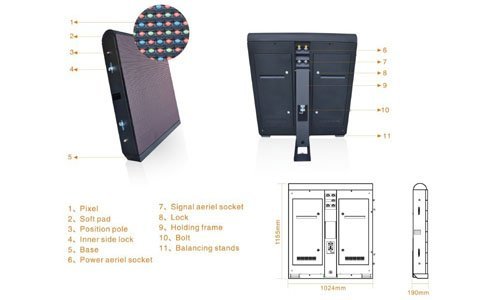

Cabinet size
The width of the LED cabinet is 1024mm, the height is 1155mm, and the side thickness is 190mm. There are aviation sockets, cabinet locks, etc. on the back of the entire cabinet.
Back of Cabinet
From the picture on the left, we can see that there is a triangular bracket on the back of the cabinet, and there is a cabinet lock above the bracket. When we need maintenance, we can rotate the lock to open the cabinet.

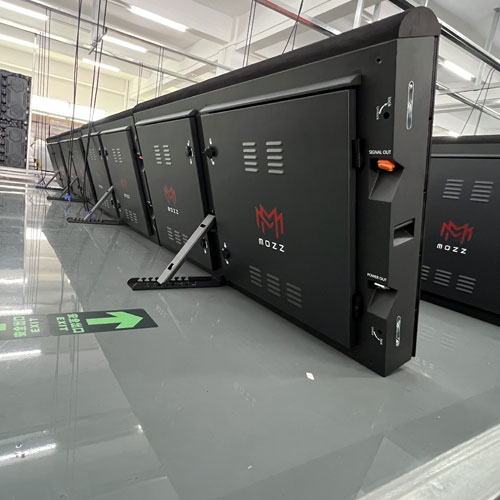

Rendering of cabinets arranged in a row
Looking from above, you can see that between the cabinets, there is a powercon about 10mm on the side, which is used to connect different cabinets and supply power to each cabinet.
Contact with Us
The sports LED display shows off all the wonderful details, instantly increasing your brand influence!
just fill in your requirements and we will contact you soon.
More About Our Stadium LED Display
| Model | P4 | P5 | P8 | P10 |
| Pixel Pitch | 4mm | 5mm | 8mm | 10mm |
| Pixel Density | 62500dot/㎡ | 40000dot/㎡ | 15625dot/㎡ | 10000dot/㎡ |
| Color Configuration | SMD 3in1 1R1G1B | |||
| Module Size | 320 x 160mm | |||
| Module Resolution | 80 × 40dots | 64 x 32dots | 40 x 20dots | 32 × 16dots |
| Cabinet Size | 640mm x 640mm/960mm x 960mm or customized | |||
| Driver Mode | 1/10 Scan | 1/8 Scan | 1/5 Scan | 1/2 Scan |
| Cabinet Material | Iron or Die cast aluminum | |||
| Brightness | 4000-7000cd/㎡ | |||
| Max Power Consumption | 1200W/㎡ | |||
| Average Power Consumption | 400W/㎡ | |||
| Refresh Rate | 1920Hz/3840Hz | |||
| Grey Level | 16Bit | |||
| Certifications | CE, ROHS, ISO9001 | |||
| View Angle | Horizontal 140° Vertical 140° | |||
| Screen Control Method | PC or Mobile Phone | |||
| IP Rating | IP65 | |||
| Input Voltage | AC110V-220V,50Hz-60Hz | |||
| Temperature-operating | -10℃-60℃ | |||
| Life Span | ≥100,000 Hours | |||
Testimonials
What is the difference between stadium LED display and conventional display?
Conventional displays are relatively fragile, and a little carelessness can cause damage to the entire display. The stadium LED display is equipped with a special protective mask, which has strong anti-collision capabilities.
Can stadium LED displays be used in other places besides venues?
Yes, stadium LED displays are not limited to use in venues. They can also be temporarily installed in various occasions. For example, some use stadium displays with specific materials for wedding venues. Therefore, you can flexibly match it according to the actual situation.
What materials are used for packaging and transportation of stadium LED displays?
The stadium LED display is transported in a flight box, so that if it is not used temporarily, it can be easily disassembled and moved to other places.。
What is the difference between stadium LED display and conventional display?
Conventional displays are relatively fragile, and a little carelessness can cause damage to the entire display. The stadium LED display is equipped with a special protective mask, which has strong anti-collision capabilities.
Can stadium LED displays be used in other places besides venues?
Yes, stadium LED displays are not limited to use in venues. They can also be temporarily installed in various occasions. For example, some use stadium displays with specific materials for wedding venues. Therefore, you can flexibly match it according to the actual situation.
What materials are used for packaging and transportation of stadium LED displays?
The stadium LED display is transported in a flight box, so that if it is not used temporarily, it can be easily disassembled and moved to other places.。
