Outdoor LED Display
The Outdoor LED Display is an LED screen constructed using JYLED outdoor LED modules. Its high brightness and exceptional durability make it widely applicable across numerous outdoor settings.
Comprehensive Outdoor LED Display Solutions
Given the unique challenges of outdoor environments, other display types either lack weather resistance or fail to deliver sufficient brightness. Consequently, in the commercial outdoor display sector, no alternative can rival outdoor LED displays. Presently, all large-scale displays and billboards encountered outdoors are realized through outdoor LED technology.
Different scenarios require distinct installation methods. LED has designed multiple solutions tailored to various outdoor environments. For instance, column-mounted LED displays are ideal for open spaces and highways, while facade LED displays and mesh LED displays are suitable for buildings and tall structures.
For temporary outdoor applications, rental LED displays provide a flexible solution. To explore more outdoor solutions tailored to your needs, please leave your contact information to discuss further.
Types of Outdoor LED Displays
LED has developed multiple outdoor LED display types to meet diverse scenarios and requirements:
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Key Features of LED Outdoor LED Displays

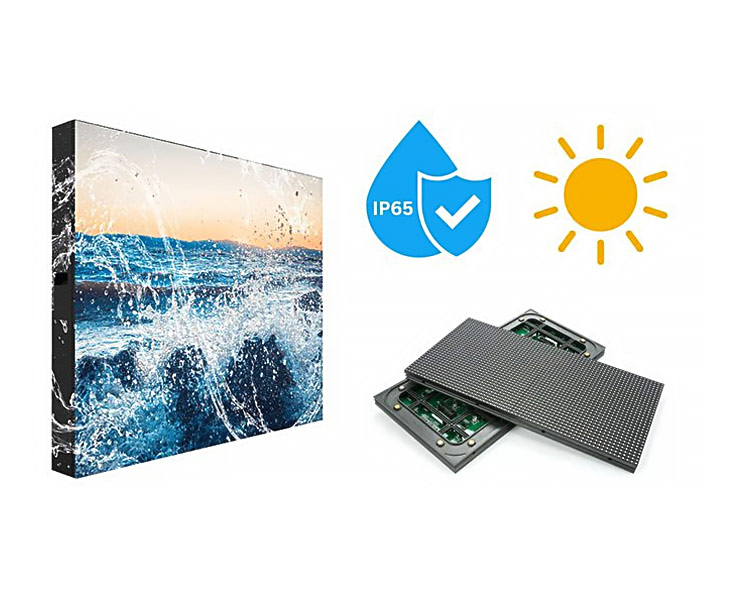

IP65 Protection Rating
LED outdoor LED displays incorporate multiple internal protective measures, achieving an IP65 rating. This provides sufficient defense against harsh outdoor conditions like heavy rain and dust storms.
Wide Viewing Angle
LED outdoor LED displays offer an ultra-wide 170° viewing angle. Viewers can enjoy high-definition images from any angle without distortion.
High Brightness
Standard outdoor LED displays achieve 4500-5500 nits of brightness. Opting for outdoor direct-plug LED displays enables peak brightness up to 10,000 nits.
Multiple Models Available
LED offers diverse outdoor LED display models. If you cannot locate a suitable model on our page, please submit your details via the form. We will contact you promptly.
Superior Light Decay Resistance
Compared to similar LED chips, our outdoor displays exhibit stronger resistance to light decay. This is achieved by incorporating rare metals like gallium and indium during production. These elements enhance chip stability, significantly boosting light decay resistance and extending lifespan beyond standard displays.

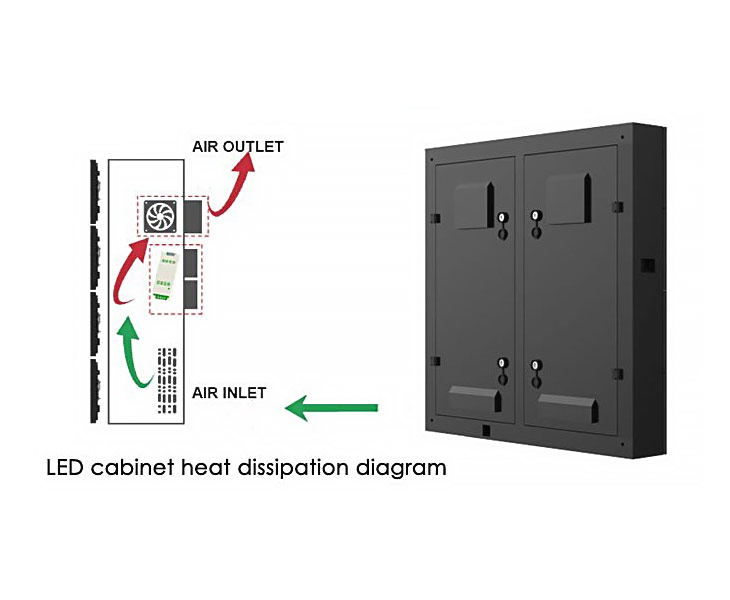

Dual-Circulation Cooling System: Withstands Extreme Heat
We all know that during hot summers, outdoor temperatures frequently reach 60°C (140°F) or even 70°C (158°F). Under such scorching conditions, ordinary displays struggle to endure these temperatures, but LED outdoor LED displays handle them effortlessly.
Thanks to LED’s dual-cycle cooling system, heat generated during operation is efficiently dissipated. Even when outdoor temperatures exceed 60°C, you can rest assured that LED outdoor LED displays will continue functioning reliably.

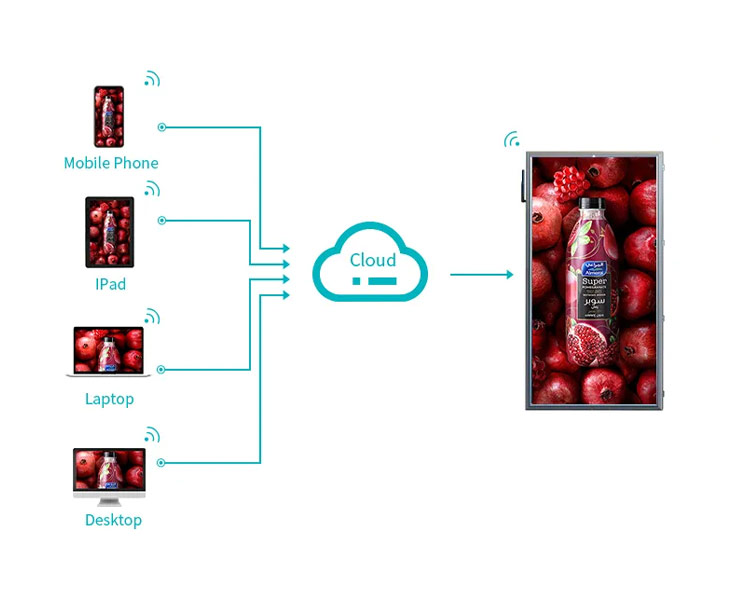

Cloud Server Content Updates & Management
When managing multiple outdoor LED displays, updating content individually becomes cumbersome. JYLED offers cloud controllers that receive remote signals from the cloud.
This enables bulk content updates across multiple displays. Simply configure commands in the cloud to simultaneously refresh content on all connected outdoor LED displays.

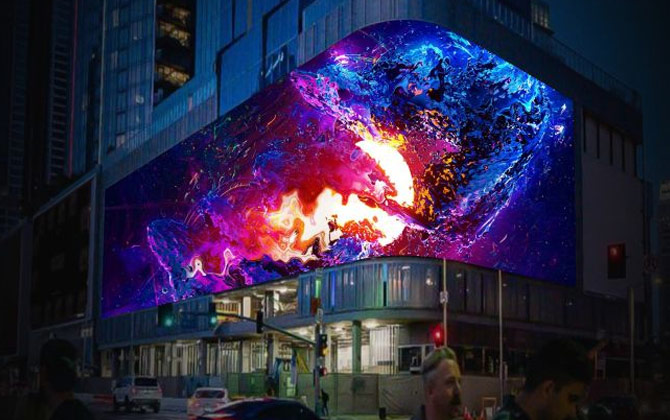

LED Creates the Best Outdoor LED Display for You!
As a professional outdoor LED display manufacturer, JYLED operates an 8,000+ square meter production facility. We maintain ample inventory to provide premium products at competitive prices.
We accommodate customization of all outdoor LED display parameters—whether model, cabinet dimensions, or screen size—demonstrating JYLED’s bespoke manufacturing capabilities.
Outdoor LED Display Applications

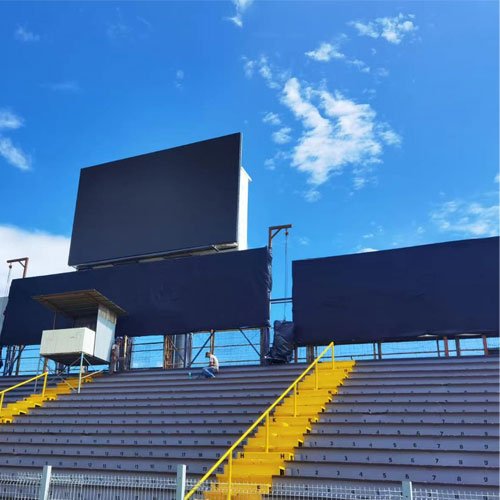

Stadiums and Arenas
Stadiums and arenas represent key deployment scenarios for LED outdoor LED displays. If you observe carefully during a game, you’ll notice that all moderately sized stadiums or arenas partner with relevant advertisers to broadcast corresponding promotions.

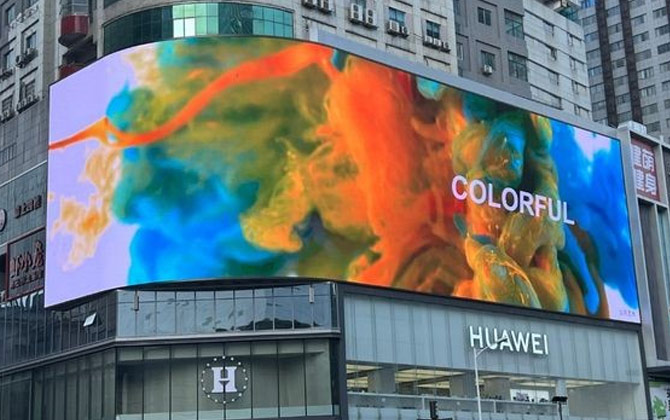

Shopping Malls and Commercial Centers
As hubs for high foot traffic and key venues for consumer guidance, many advertisers utilize LED outdoor LED displays along the periphery of shopping malls or commercial centers to broadcast promotional ads, thereby attracting more passersby to enter and make purchases.
Traffic Guidance
All road traffic signage relies on outdoor LED displays. These screens not only maintain real-time traffic updates but also instantly relay actual road conditions to drivers, enabling them to plan ahead and avoid congestion.
Community Information Delivery
During routine operations, outdoor LED displays in communities can show temperature, humidity, and other environmental data. In emergencies requiring public notification, content can be remotely updated to help residents respond effectively and make timely decisions.
Contact with Us
One-Stop Outdoor LED Display Solutions
LED delivers professional one-stop outdoor LED display solutions. From order placement to installation, our dedicated team provides attentive service throughout.
More About Our Transparent LED Display
Outdoor LED Module Parameter
| Pixel Pitch(mm) | P2.5 | P3.33 | P4 | P5 | P6.67 | P8 | P10 |
| LED Encapsulation | Kinglight | Kinglight | Kinglight | Kinglight | Kinglight | Kinglight | Kinglight |
| LED Type | SMD 1415 | SMD 1921 | SMD 1921 | SMD 2525 | SMD 2727 | SMD 3535 | SMD 3535 |
| Cabinet Size (W x H, mm) | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 | 960*960 |
| Depth(mm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Weight(kg/m2) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Control System | Novstar | Novstar | Novstar | Novstar | Novstar | Novstar | Novstar |
| Standard Brightness(nits)(cd/m2) | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 | 5500 |
| Viewing Angle | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 | 120 * 70 |
| Contrast Ratio | 2000 : 1 | 2000 : 1 | 2000 : 1 | 2000 : 1 | 2000 : 1 | 2000 : 1 | 1000 : 1 |
| Power Consumption (Avg.)(Watts/Tile) | 300 | 300 | 300 | 300 | 300 | 350 | 350 |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Driving IC | ICN2028s | ICN2038s | ICN2027 | ICN2027 | ICN2027 | ICN2027 | ICN2027 |
| Protection (IP) Rating | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Cabinet Type | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Data Processing | 14 Bit | 14 Bit | 14 Bit | 14 Bit | 14 Bit | 14 Bit | 14 Bit |
| Power Supply(300w) | Chuanglian | Chuanglian | Chuanglian | Chuanglian | Chuanglian | Chuanglian | Chuanglian |
Testimonials
How can outdoor LED displays achieve 3840Hz?
Standard outdoor LED displays typically operate at 1920Hz refresh rates. For custom configurations requiring 3840Hz or 7680Hz refresh rates, please contact us for bespoke solutions.
How do outdoor LED displays achieve 4K resolution?
Outdoor LED display resolution is determined by pixel pitch and screen size. A smaller pixel pitch means higher LED density per screen area, making 4K resolution easier to achieve. Conversely, a larger pixel pitch results in lower LED density, requiring a larger screen size to achieve the same resolution.
What brightness levels can outdoor LED modules reach?
Different outdoor LED modules achieve varying brightness levels, influenced by materials, packaging technology, etc. Below are brightness levels for several common outdoor LED modules:
2mm outdoor LED module: 4000 cd/m²
3mm, 3.91mm, 4mm, 4.81mm, 5mm outdoor LED modules: 5500 cd/m²
6mm outdoor LED module: 5700 cd/m²
8mm and 10mm outdoor LED modules: 6000 cd/m²
16mm and 20mm outdoor LED modules: 10000 cd/m²
Detailed Tutorial for Building Outdoor LED Displays
From the above introduction, we understand that outdoor LED displays have multiple installation types. Here, we’ll focus on the most complex pole-mounted installation to explain how to build an outdoor LED display from scratch.
Project Consultation
LED’s professional engineers will design the steel structure for the outdoor LED display based on the CAD drawings provided by the client. Of course, if the client does not have CAD drawings, they can consult us to obtain them.
After LED’s customer service team reviews the client’s drawings, usage environment, and screen size, they will develop the optimal outdoor LED display solution. This includes specifying the required number of LED display cabinets, LED video processors, square tubes, network cables, and other materials.
Once both parties confirm all details are accurate, the client pays a deposit. LED then initiates production based on the finalized LED solution. At this stage, the client can begin recruiting personnel for on-site construction.
Project Construction
Once the construction team is assembled, the process involves two steps. First, a professional crew uses excavators to dig the foundation holes for the outdoor column display. Second, welders assemble the square tubing to form the steel structure.
By the time the foundation is complete, the outdoor LED display panels will have been manufactured and delivered to the client. Construction personnel can then secure the welded steel structure to the prepared foundation. The received outdoor LED display cabinets are placed onto the lowest support poles and fastened with M10 screws.
Construction Precautions:
– Connection plates must align perfectly with cabinet mounting holes; otherwise, cabinets cannot be secured properly.
– Adjacent cabinets (left/right or top/bottom) must be positioned close together and fastened with M10 screws.
When installing the second row of outdoor LED display cabinets, first insert the positioning pins of the next row into the bottom alignment holes, then connect adjacent cabinets using the provided connectors.
After completing the entire outdoor LED display installation and plugging in all internal power and signal cables, proceed to turn on the power switch for the outdoor LED display and start the computer running the control software for the LED screen.
Project Testing
Within the LED control software, test the outdoor LED screen’s display quality, smoothness, and presence of dead pixels, bad pixels, or abnormal LED display modules using various playback formats.
After completing all troubleshooting steps, exit the LED control software and turn off the power if no issues are found. Should abnormalities arise during troubleshooting, contact us. LED will arrange for a professional LED display engineer to provide remote troubleshooting assistance.
Installation Precautions:
- During cabinet installation, ensure precise alignment of each cabinet. Misaligned cabinets will create more noticeable bulges on the screen. Additionally, gaps between misaligned cabinets may allow rainwater ingress.
- After installing the entire bottom row of cabinets, secure the screws before proceeding to install subsequent cabinets in sequence.
- Due to the weight of LED display cabinets, two people should handle them during transportation.
- When installing cabinets, handle them with care to prevent damage to the LED lamps.
- Maintain safety precautions throughout the entire installation process.
