LED Screen Floor
LED screen floors are a popular application of LED displays seen frequently on large stages in recent years. They bring a new vitality to static floors, enhancing the overall effect in settings such as stages, virtual LED productions, and tourist attractions.
- High-Quality Display
- Load-Bearing Capacity
- Non-Slip and Wear-Resistant Strong
The working principle of interactive LED screen floor
LED screen floors without interactive and with interactive two kinds, without interactive LED tiles screen and conventional LED screen is similar, the difference lies in the splicing of the LED panel.
LED screen floors are commonly used non-slip durable LED panels, and load-bearing capacity, so it can be paved on the ground use. Ordinary LED panels do not have these features, and are very fragile, can not be randomly bumped.
Interactive LED screen tiles are based on the LED screen tiles are modified and upgraded to increase the interactive function. Through the sensor to obtain the position of the character, and then the position information will be transmitted to the receiver, and control the screen to do the position of the marking point to change.
After ordering the interactive LED floor tile screen, generally LED floor display manufacturers will provide some basic interactive material, if you need other different interactive effects, you need additional customization.
Latest Interactive LED Floor Screen Projects We Finished

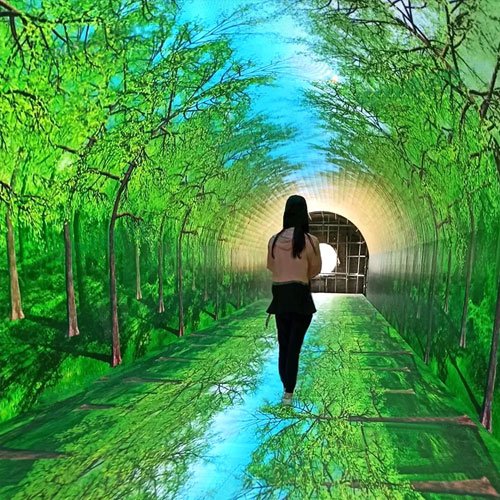

Interactive LED Floor Screen
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
Transparent LED film display
Transparent LED film display has an overall weight of only 3kg/㎡, its lightweight design allows you to install it directly on the glass without the need for complicated steel construction
LED Screen Floor Advantages Introduction
Suitable for Stage
Strong load-bearing capacity, suitable for stage decoration and stage performances
Quality Assurance
The quality is stable and reliable, and can operate uninterrupted for about 100,000 hours.
Standard Size
LED Screen Floor use standardized iron cabinets or aluminum cabinets with sizes of 500x500mm and 500x1000mm, so that customers can easily calculate the area before purchasing.
Strong Sealing
The LED Screen Floor uses a thickened mask to protect the LED module, which is not only waterproof and dustproof, but also anti-slip and scratch-resistant.
LED Floor Tile Development History
In 2008, LED floor tile screen was first used in the Beijing Olympic Games. Once unveiled, it was a sensation, and officially opened the LED floor tile screen.
In 2010, with the application of LED screen floor tile display, we began to see in some large shopping malls, already upscale restaurants.
In 2013, LED’s first infrared radar interactive floor tile LED display came out.
In 2015, LED innovated again, the first built-in interactive chip floor tile LED display came out.
In 2017, the mask used in the LED floor tile screen was improved, with a stronger structure and stronger anti-slip and wear-resistant performance.
In 2019, the sensor technology was upgraded with a response time of less than 0.1 seconds.
In 2022, more models were expanded to support P2.6, P1.95, P1.83, etc.
LED Screen Floor
The LED screen floor is an innovative and exciting addition to any space. These tiles are designed to provide a unique and immersive experience for users, allowing them to interact directly with the display.
- The LED screen floor can be programmed to respond to movement, making them perfect for use in retail stores, museums, and other interactive exhibits. With their customizable color and brightness settings, the floor LED display can be tailored to create different moods and atmospheres.
- The LED floor tiles are also incredibly durable and can withstand heavy foot traffic, making them perfect for use in public spaces. Whether you’re looking to create an interactive art exhibit or a dynamic marketing campaign, the interactive LED floor tiles are an excellent choice.
LED Screen Floor Tiles
Practical scope: LED screen floor tiles products are used in stages, concerts, shopping malls, performances, DJ bars, discos, shopping centers and other fields.
- LED provides you with better quality LED screen floor
- 200 sets of materials, 2 tons of load-bearing, scratch-resistant mask, high-definition, three-year warranty
- More than 200 interactive materials can be switched at will
- LED floor panels contains all internet celebrity special effects to attract more popularity
Advantages of the two installation methods of LED tile screen
There are two main installation methods for LED floor tile screen, one is embedded installation, which combines the LED screen tile with the wall or stage, and the other is above ground installation, which directly installs the LED floor tile screen on the ground.
The biggest difference between the two tile screen installation is that the ground installation can be stored when not in use. Let us understand the two tile screen installation form:

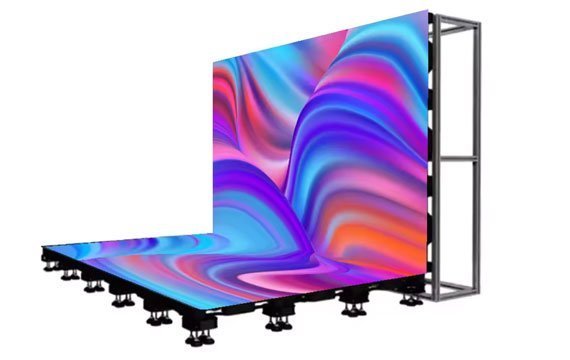

Embedded installation
LED tiles can be integrated into walls or floors to form a video wall or a huge display screen on the floor. The advantages are as follows:
- High safety: Because the LED tile screen is completely integrated with the wall or floor, it can avoid the situation of stumbling.
- Long service life: Because it is completely embedded in the floor and walls, it is exposed to less dust or moisture, which helps to protect the internal PCB boards, thus prolonging the service life.
- High space utilization: Since the installation is level with the floor, it does not take up additional space, so the space utilization is very high.

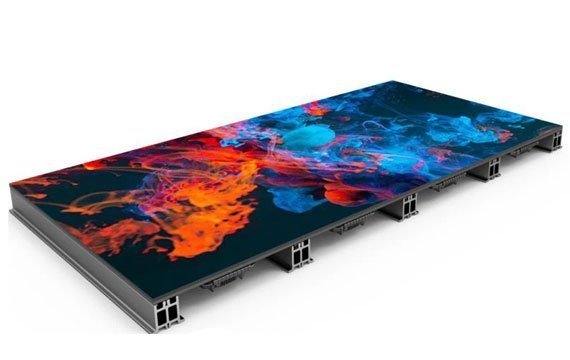

Floor mounting
Unlike recessed installation, above ground installation involves laying the LED tiles directly on the floor and storing them away when not in use. The advantages are as follows:
- Easy to maintain: floor mounted displays are easier and more convenient to maintain.
- Mobility: Floor-mounted installation is easy for us to move or reconfigure, so it is very helpful for some temporary activities and events.
- Construction cycle is shorter: because the floor mounted LED display does not need to change the original building structure, and the installation is more simple, so the construction cycle is much shorter.
How to choose between the two?
This we need to start from the specific solutions and application scenarios, if it is a long-term fixed use, it is recommended to choose embedded installation, if it is a short-term use, it is recommended to use the ground installation.
If you have specific needs, but still wondering how to choose, please get in touch with us through the contact information on the right.
Application Scenarios of LED Floor Screen

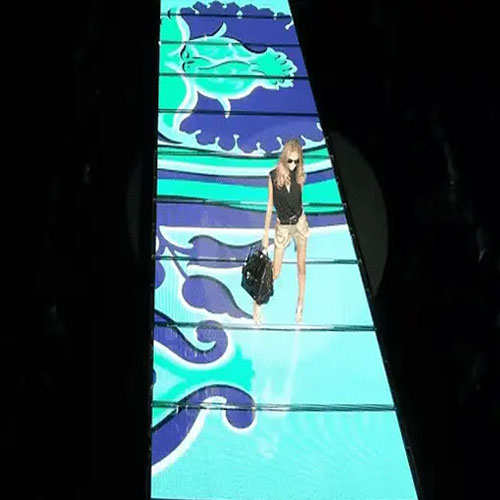

T-stage Show
In T-stage show or stage performances, the floor often changes along with the movements of the performers, thanks to the use of LED floor tiles. In large-scale shows, organizers lay LED floor tiles to better integrate performers with the stage.

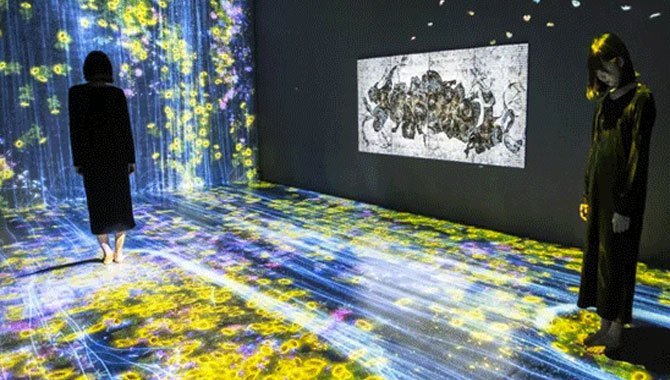

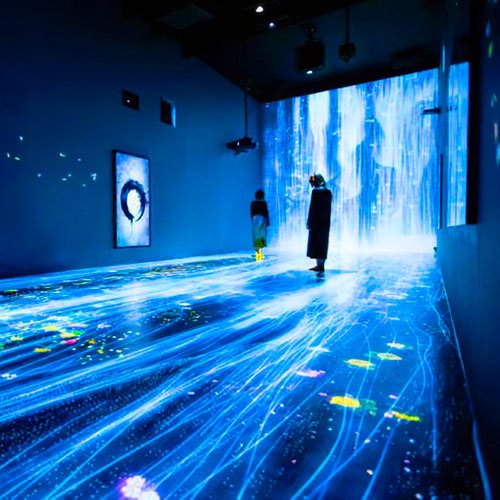

Exhibition Room
Exhibition rooms not only display items but also serve as cultural galleries for knowledge dissemination. When visitors step onto the LED floor tiles, internal sensors activate, providing them with information about the exhibited items. The tiles can also display different floor backgrounds, offering visitors a novel experience.

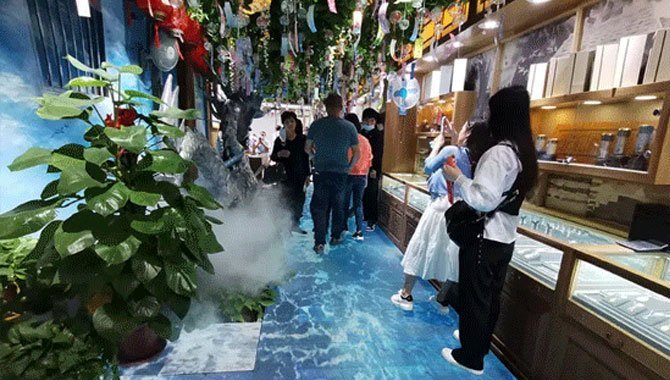

Tourist Attraction
LED floor tiles are instrumental in creating popular tourist attractions. For example, in recent years, the combination of glass walkways and LED floor tiles has become a trend.
As tourists walk on the walkway, special effects like broken glass or swimming fish appear under their feet, providing them with a sense of surprise.
.

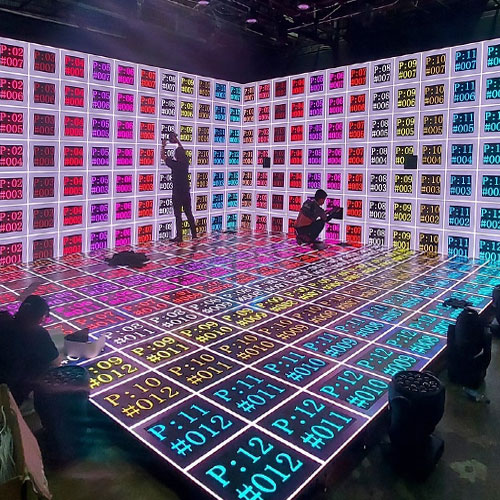

Virtual LED Wall
Virtual LED walls are a new application combining high-definition LED video walls with LED floor tiles. They address the limitations of traditional shooting methods, which cannot capture the ground, thereby providing filmmakers or directors with more creative possibilities.
Contact with Us
LED floor displays bring floors to life, creating the most unique advertising styles!
just fill in your requirements and we will contact you soon.
More About Our Transparent LED Display
| Model | P2.976 | P3.91 | P4.81 | P6.25 |
| Module size(mm) | 250×250 | |||
| Module resolution(dot) | 84×84 | 64×64 | 52×52 | 40×40 |
| Scanning | 1月28日 | 1/32 | 1月26日 | 1月10日 |
| Cabinet size(mm) | 500×1000/500×500 | |||
| Density(dot/㎡) | 112896 | 65410 | 43222 | 25600 |
| Brightness(cd/㎡) | 2500 | 1200 | 1200 | 2500 |
| Max.power consumption(w) | 800 | 800 | 800 | 800 |
| Average power consumption(w) | 400 | 400 | 400 | 400 |
| Cabinet weight(kg) | 25 | |||
| Cabinet material | Iron/Die-Casting Aluminum | |||
| IP rate | IP68 | |||
| Grayscale | 10000:1 | |||
| Refresh rate(hz) | 1920/3840 | |||
| Horizontal viewing angle | 120° | |||
| Vertical viewing angle | 120° | |||
| Input voltage | AC110V-AC220V | |||
| Temperature-operating | -10℃-60℃ | |||
| Humidity-operating | 10%-90% | |||
| Life span(H) | 100000 | |||
| MTBF(H) | 10000 | |||
What types of modules are most commonly used for LED screen floor?
There are many different types of modules for LED screen floor. The most commonly used models are P3.91 and P4.81. Other models generally need to be selected according to specific application scenarios.
For example, if the laying area is large, the spacing can be considered. For larger floor tile screen products, the cost performance ratio will be slightly higher.
If you want to display a clearer picture based on the display quality, you can consider choosing a smaller pitch. Such an LED screen floor will display a better picture.
How to Choose a High-Quality LED Floor Tile Display?
We can evaluate a high-quality LED floor tile display based on factors such as load-bearing capacity, protection rating, and display performance.
High-quality LED floor tile displays can typically withstand a load of around 2 tons, have an IP65 protection rating, and offer high-definition display images. With these performance features, the quality of LED floor tile displays can be highlighted.
What is the durabiliWhat parts does the LED screen floor tile consist of?ty of transparent LED display?
LED screen floor tiles are composed of LED panels, transparent masks, peripheral frames and LED control systems.
